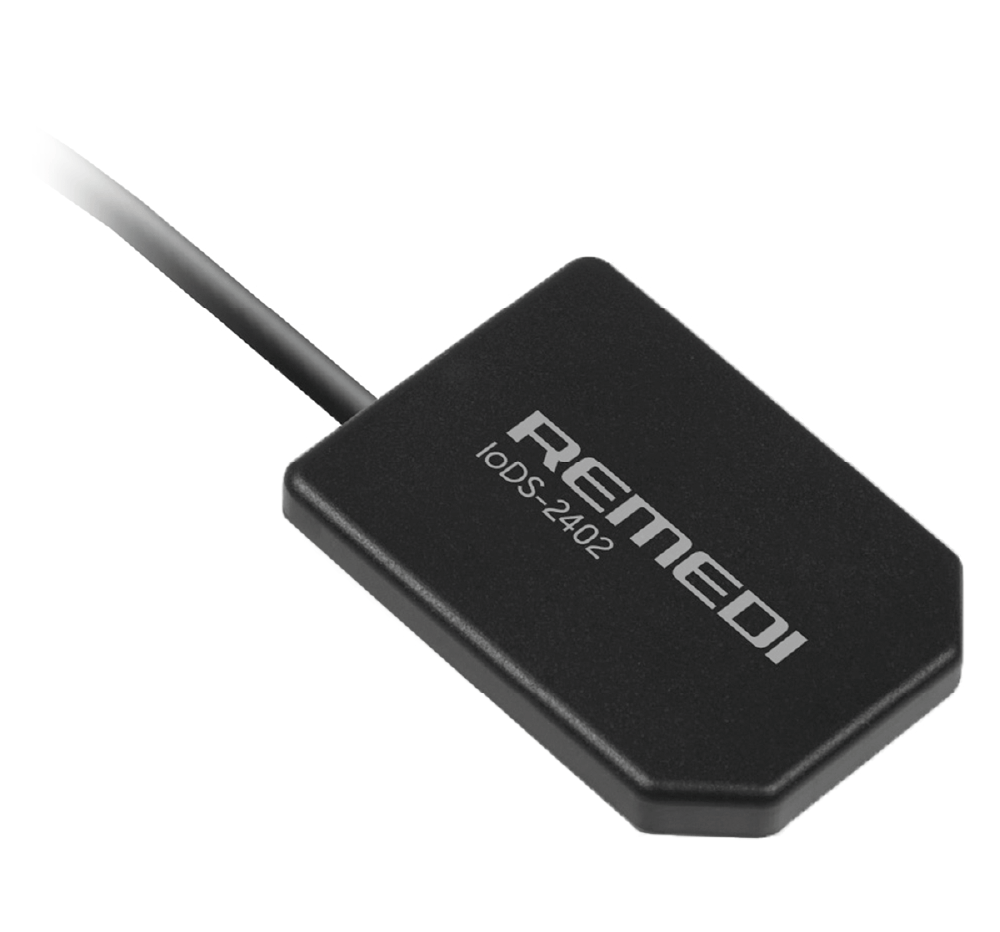

Digital Intraoral Image Sensor
Main features
Product Advantages
- ㆍCSI Scintillator
- ㆍHigh Resolution
- ㆍAdvanced Image Processing Algorithm
- ㆍEasy to Use
- ㆍIncreased Patient Comfortableness and Ergonomic Design
- ㆍEasy Connection Using Twain Driver
Fast Response
High Image Quality
Image Quality
- ㆍLess Graininess : Cleanest image on the market
- ㆍContrast Resolution : Best at the penny test
- ㆍSpatial Resolution : 19 micron pixel size
Patient Comfort
- ㆍErgonomic Design with round corners : 6.0mm radius
- ㆍThin Sensor Plate : 5.4mm [less than 1/4”]
- ㆍLow Profile Button : 6.0mm
Designed for Durability
- ㆍThinner Cord : Direct USB from sensor plate to computer
- ㆍSturdier Cord Jacket : Fewer wires enables greater protection
- ㆍProtected Against Fluids/Contaminants : Sealed cord
Ergonomic Design
- ㆍRange of Acceptable Exposure : Superior electronic gain control
- ㆍSnag-Resistant Cord : No interface box or cord bulge
- ㆍEasier Cleaning : Immersible in glutaraldehyde and other disinfectants
Image Quality
Less Graininess / Contrast Resolution / Spatial Resolution
Patient Comfort
Ergonomic Design with round corners, Thin Sensor Plate
Easy to use
Low patient dosage, Internal shielding protect the operator
Image Solution
Fast Response High Image Quality

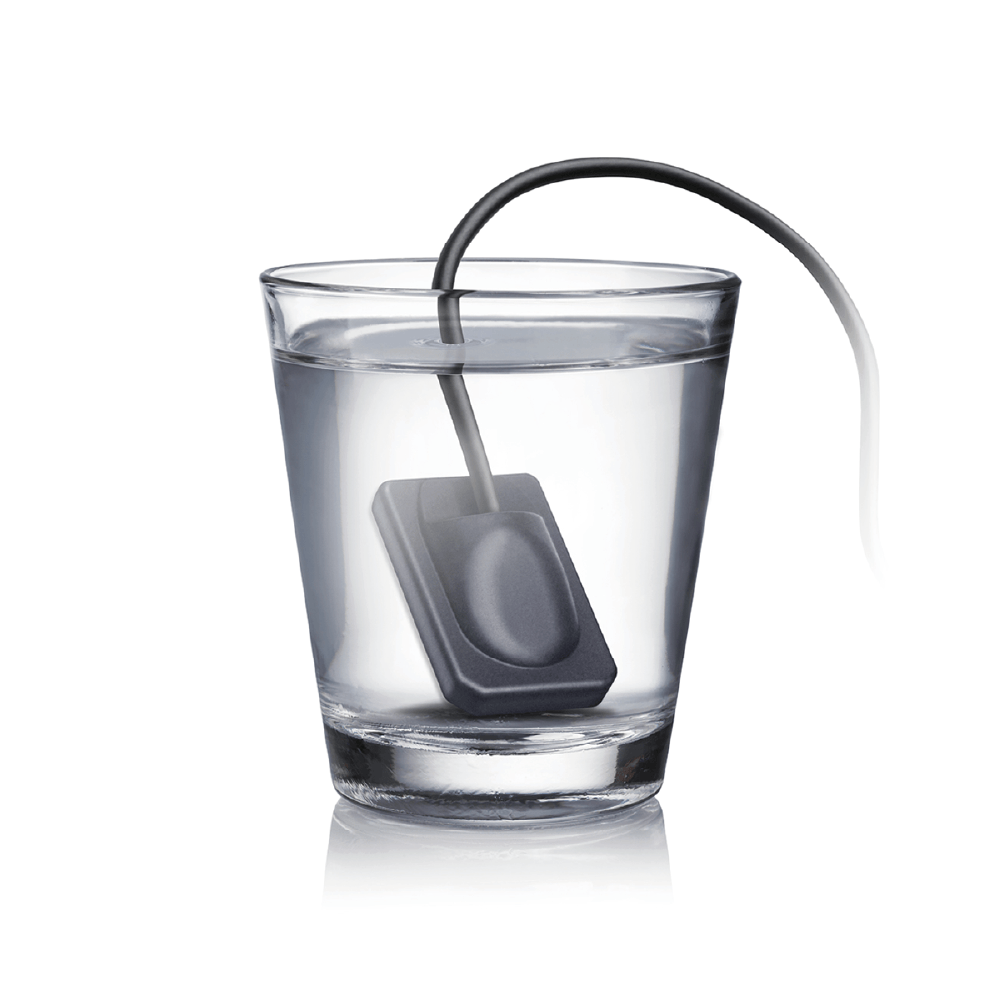

Waterproof

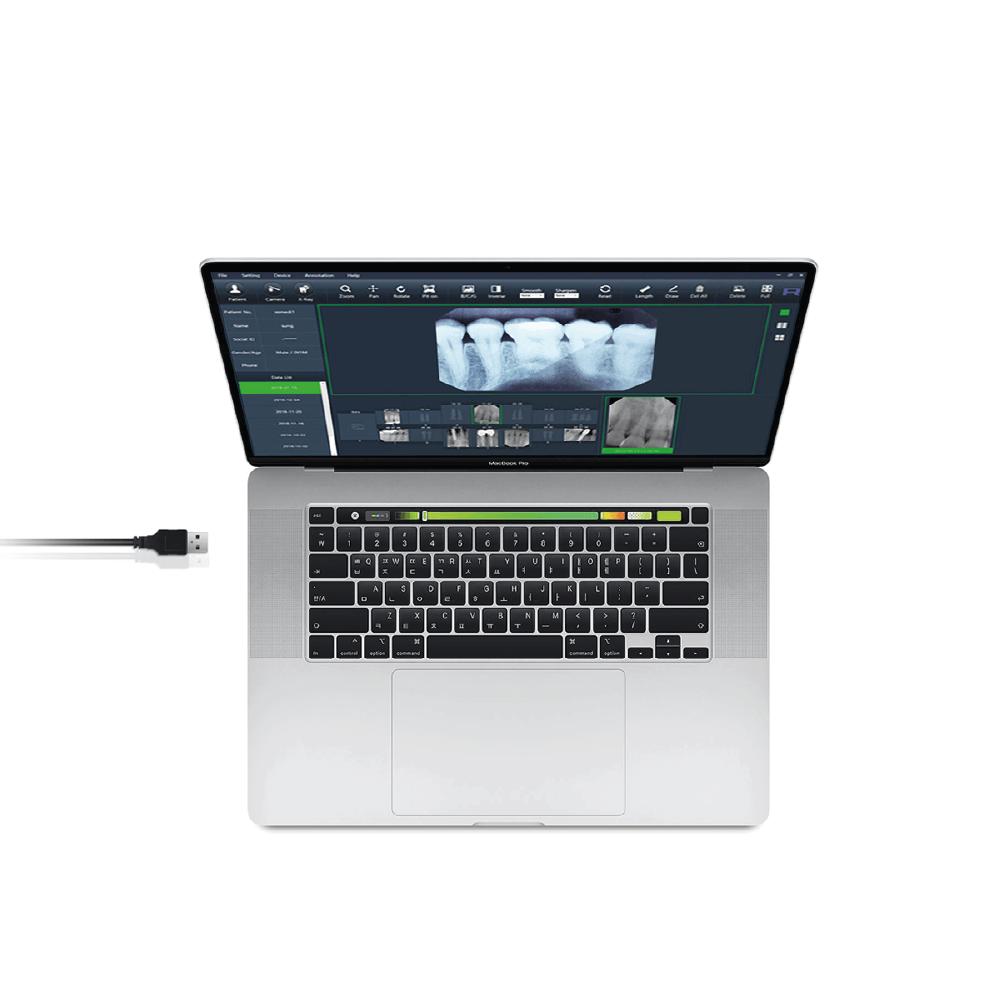

Easy USB Connection

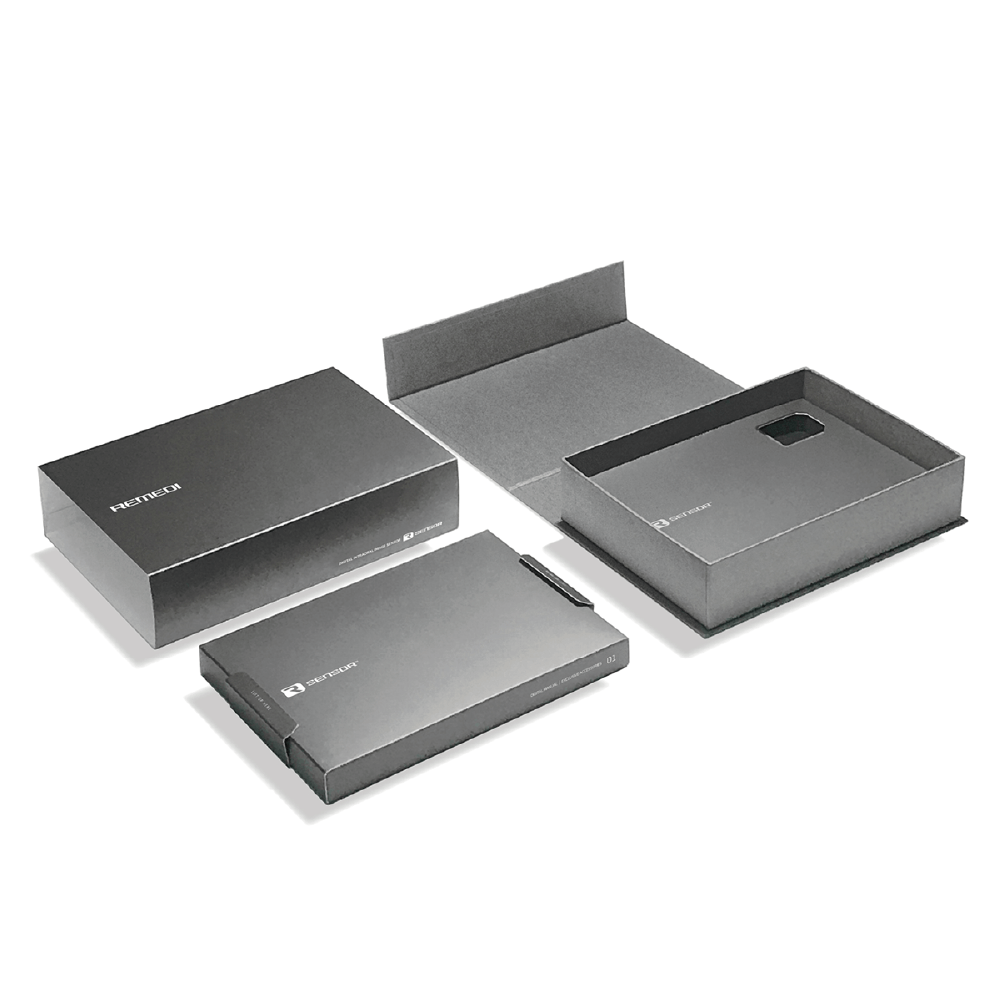

Safe Product Packaging
Specification
Product Spec’
Parameter
CONTENTS
Values
Ourside Dimensions
39 x 25 mm
Image Size [H x V]
30 x 20 mm
Image Resolution
25 lp/mm
Pixel Size
20 x 20 um
Pixel Pitch [H x V]
20
Number of Total Pixels [HxV]
1.5 Megapixels
Number of Effective Pixels
1,000 x 1,500
Sensor Type
CMOS Image Sensor
Scintillator Type
Csl [TI]
Interface
USB 2.0
Frame Rate
1.4fps
Parameter
CONTENTS
Values
Ourside Dimensions
42 x 30mm
Image Size [H x V]
34 x 26mm
Image Resolution
20 lp/mm
Pixel Size
20 x 20um
Pixel Pitch [H x V]
20
Number of Total Pixels [HxV]
2.2 Megapixels
Number of Effective Pixels
1,300 x 1,700
Sensor Type
CMOS Image Sensor
Scintillator Type
Csl [TI]
Interface
USB 2.0
Frame Rate
1.0fps
Specification
Product Dimension
IoDS-2401
IoDS-2402
